Digital speed marker Stage6 R/T MK2

Full digital gauge 12v Stage 6 R/T MK2

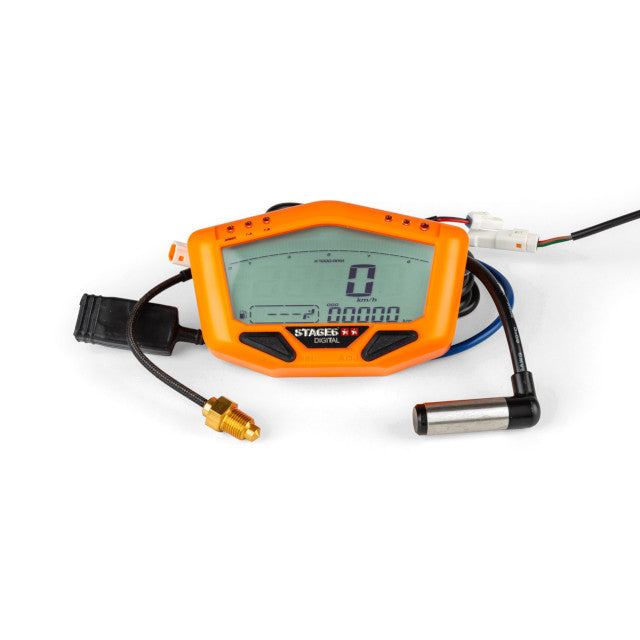

Speedometer digital Stage6 R/T, which combines a compact design with full functionality.
The display is illuminated, the Speedometer operates with its 12V battery. The engine speed is detected with an inductive sensor, the speed is detected with a magnet on the wheel.

 Features:


• Dimensions: 100x60x20mm
• Operating voltage: 12v
• Batteries: CR2032 (Only used to power Standby and data storage)
• Speed indicator: 0 to 360 km / h (alternatively miles per hour)
• RPM: up to 20,000 rpm
• Scalable RPM graph
• Thermometer: 0 to 250 °C
• Hours of use: 0 to 999.9 h
• Gasoline: 0-100%
• Voltmeter: 0 to 18.0 V
• Odometer, gear shift indicator, high-speed recorder, temperature alarm
• Time required to achieve a certain speed.
• Time required to reach a certain distance.
• Equipped with two PT-1/8 thread temperature sensors (Adaptable to Minarelli Horizontal, for other engines we indicate below)
• Colors: Orange, Black, White

Table of references for 50cc mopeds

• Piaggio LC (M10x1.25)
  Ref: BF100125-n
• Peugeot LC (M14x1.25)
  Ref: S6-4030ET03 / BF140125-n
• Minarelli AM6 Engine (M14x1.25)
  Ref: S6-4030ET03 / BF140125-n
• Derbi E2/E3 Engine
  Ref: BF140150-n
• AC Engines 2T
  Ref: KO-KI000R14
• AC 4T Engines
  Ref: KI000R10-n
• Minarelli Scooter (PT1/8)
  Ref: S6-4030ET01 / BF030125-n


• If your motorcycle model does not have a battery, you must use the battery holder QQ004000.

Attention! On some motorcycle models, it may vary; before ordering the sensor, measure the metric and thread pitch.

Assembly instructions
