Multifunction Marker DB EX03 (CE) Koso

Complete gauge DB EX-03 from manufacturer KOSO, approved.

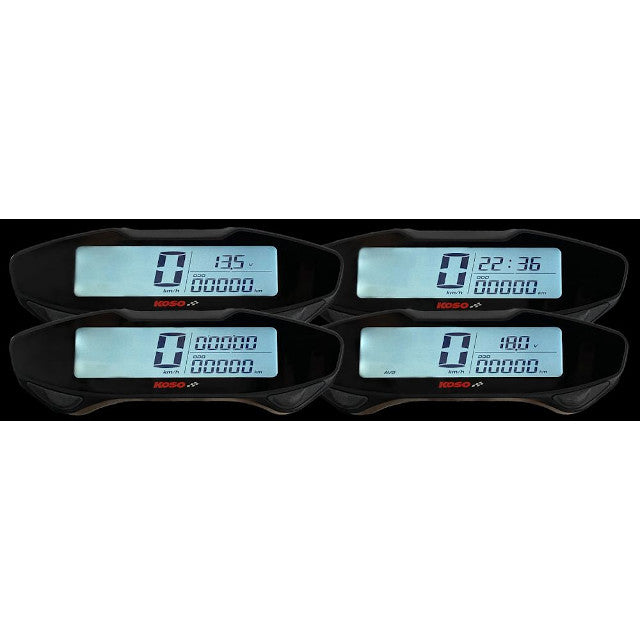

The Speedometer DB EX-03 serves as a speed indicator, odometer, hour meter (operational), clock, stopwatch, voltmeter, displays the trip, maintenance mileage, and records values such as maximum speed, maximum voltage, and average speed.

It is equipped with indicator lights for engine oil, low fuel level, water temperature, high beams, indicators, and engine light. The Speedometer DB EX-03 with 70 g of light impresses in all areas.

• Dimensions: 120 mm x 38.8 mm x 34.2 mm

Features:

• Speedometer
  Display range: 0 ~ 360 km/h (0 ~ 225 mph) Display unit: km/h or mph
• Odometer
  Display range: 0 ~ 99,999 km (miles), automatic reset after 99,999 km (miles)
• Trip counter A, B
  Display unit: 1 km (mile) Display range: 0.0 ~ 9999.9 km (miles),
  automatic reset after 9999.9 km (miles)
• Hour counter
  Display unit: 0.1 km (mile)
  Display range: 0 ~ 99,999 hours
  Display unit: 1 hour
• Hour counter A / B
  Display range: 0 ~ 9999.9 hours, automatic reset after 9999.9 hours
  Display unit: 0.1 hours
• Clock
  Display range: 00:00 ~ 23:59
• Voltmeter
  Display range: 8.0 ~ 18.0 V DC
  Display unit: 0.1 V DC
• Stopwatch
  Setting range: 0:00:00 ~ 9:59:99
  Setting unit: 0.01 sec.
• Maintenance odometer reading
  Setting range: 300 ~ 5,000 km, can be manually cleared.
  by hand.
  Setting unit: 1 km
• MAX. Recording
  Average speed: 0 to 360 km/h
  (0 to 225 mph)
  Max. Speed: 0 to 360 km/h (0 to 225 mph)
  Max. Voltage: 8.0 ~ 18.0 V DC
• Internal battery level
  Display range: 4 levels
• Operating temperature
  -10 ~ +60 °C

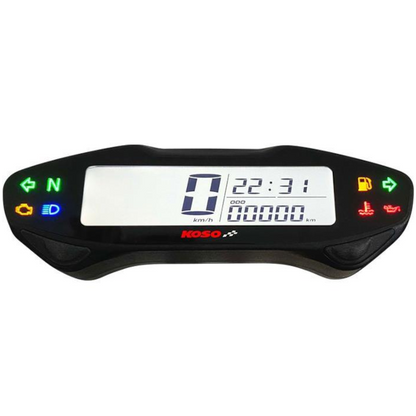

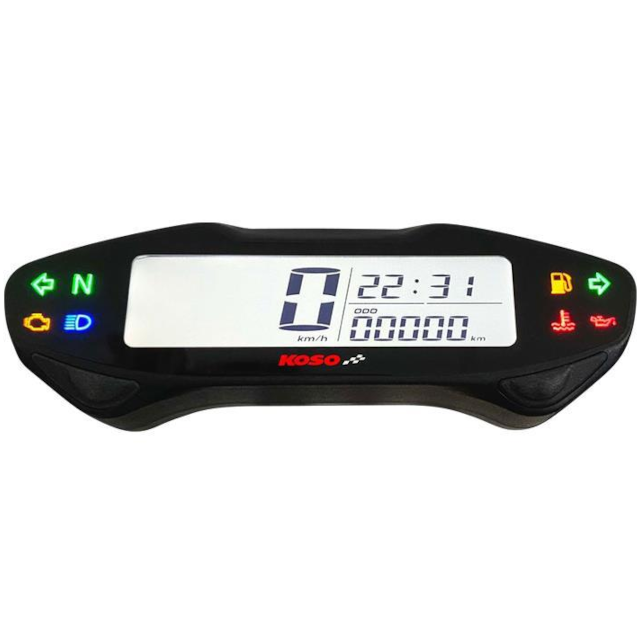

Indicators:

• Right indicator lamp (green)
• Engine oil lamp (red)
• Low fuel warning light (amber)
• Water temperature light (red)
• Neutral lamp (green)
• High beam light (blue)
• Left indicator lamp (green)
• Engine lamp (yellow)
