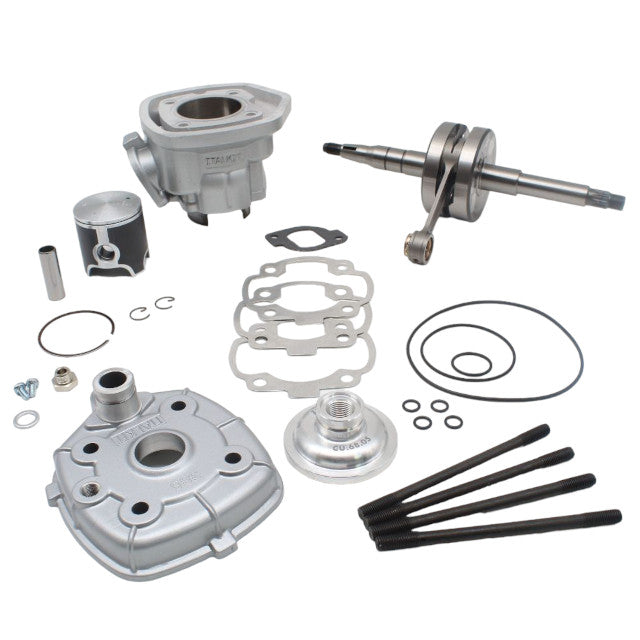

Cylinder and crankshaft kit 74cc Minarelli Horizontal LC Italkit

Kit cylinder and Crankshaft 74cc Minarelli Horizontal LC from the manufacturer Italkit

Technical specifications:

• Engine: High displacement in aluminium with a diameter of 47.6 mm. High timing, with 192° on the exhaust and 133° on the intake.
• Piston: Single-ring of 0.8 mm thickness, made of graphite.
• Cylinder head: Partially designed to optimise efficiency.
• Crankshaft: Standard stroke of 39.2 mm, dynamically balanced and ultra reinforced. Connecting rod machined to standard size (80 mm).
• Exhaust: Incorporates venturised servomotors to maximise gas flow.
• Performance: Extremely efficient, designed to operate between 10,500 and 14,500 rpm.
• Recommended installation: For optimal performance, install with a racing exhaust variant and a carburettor of at least 24 mm, along with a variable ignition.

Compatible with:

• Minarelli Horizontal LC engines
