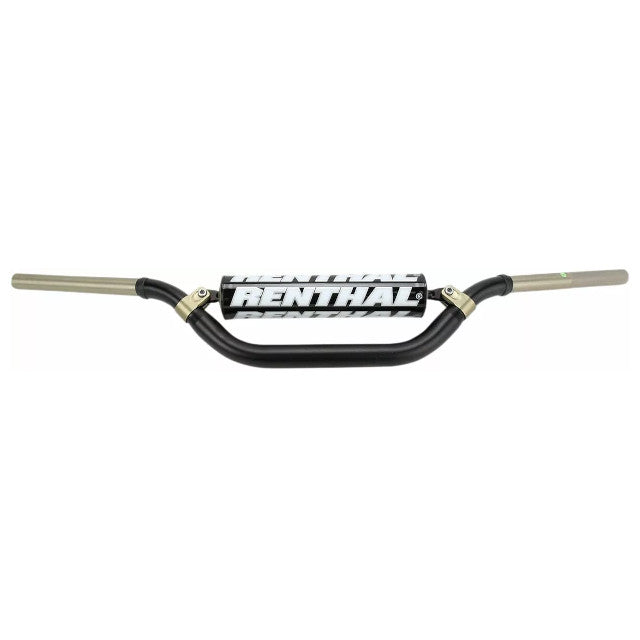

Renthal Twinwall Carmichael Handlebar black with protector

Handlebar Renthal Twinwall Carmichael black with protector

The Twinwall handlebar is an innovative product designed with a double tube structure to provide greater strength and durability. This design consists of the following key elements:

• Outer tube: Made from 7010-T73 aluminium, it has high resistance to mechanical damage and is anodised to prevent corrosion.
• Inner tube: Made from ultra-strong 7010-T6 aluminium and hard anodised to resist wear caused by grips and controls.
• Rubber end plugs: Seal the ends of the outer tube to prevent water and cleaning products from entering, protecting the inside of the handlebar.
• Laser marking: In the centre of the handlebar, to facilitate precise adjustment of the position.
• Injection-moulded handlebar pad: Provides greater protection and durability.

Attention! This handlebar requires specific 1-1/8" mounts on bikes originally equipped with 7/8" handlebars.

Technical specifications:

• Height: 12 cm (4-3/4")
• Width: 812 mm (32")
• Clamping area width: 115 mm (4-1/2")
• Base colour: Black
• Colour/finish: Black
• Clamping area diameter: 28.6 mm (1-1/8")
• Control area diameter: 22 mm (7/8")
• Handlebar diameter: 28.6 mm (1-1/8")
• Rise: 86 mm (3-3/8")
• Material: Aluminium
• Sweep: 58 mm (2-9/32")
• Type/bend: High, Twinwall, RC
