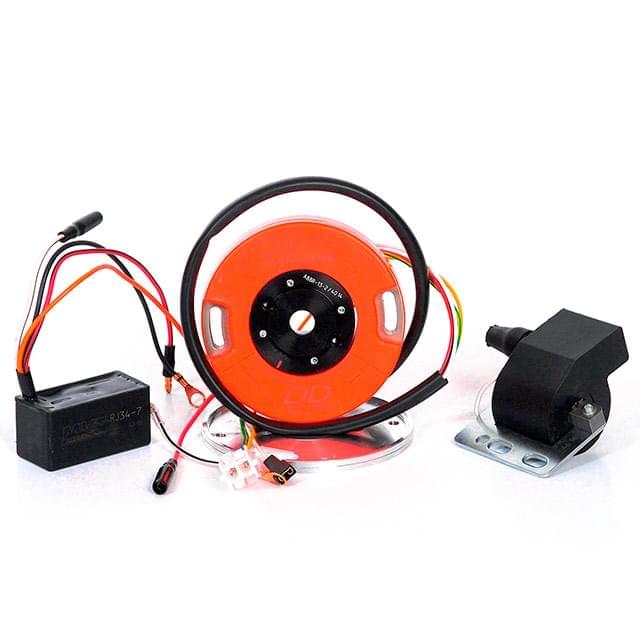

Variable racing ignition MVT Digital Direct Derbi Euro 2 / 3

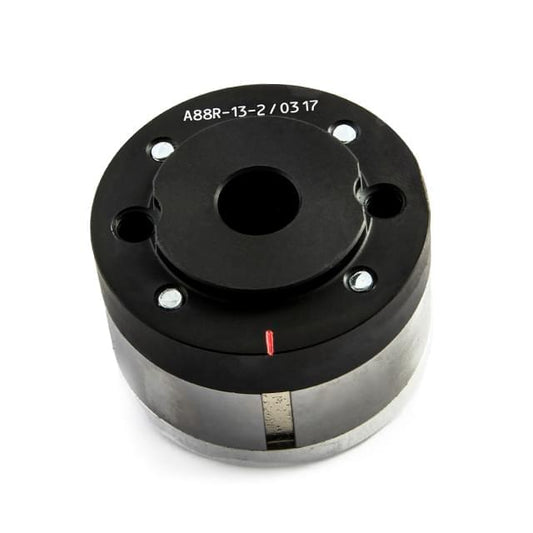

Digital Direct MVT internal ignition/rotor with light for Derbi Senda Euro 2 / 3 engines.

Digital ignition with variable advance throughout the entire rev range. This means that the digital CDI unit will adapt the spark advance from low to high revs, optimizing the performance of your engine across the entire rev band.

You will achieve a faster RPM increase and greater power from a standstill.

It is recommended to switch all bulbs to LED or low-consumption conventional ones, so you can have both front and rear lights at the same time, and use external batteries/cells for indicators, since the rotor does not charge the battery quickly enough.

CDI unit wiring

• Orange: Ignition coil
• Red/Black: Stator with red/black
• White/Black: Kill switch/Stop
• Black: Chassis ground

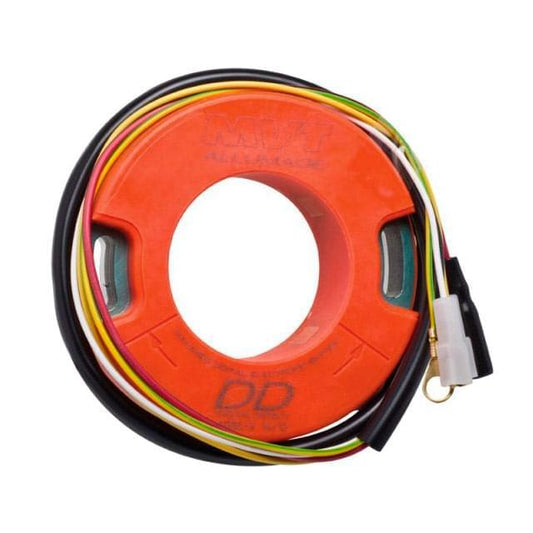

Stator wiring

• Green/Yellow: Chassis ground
• Red/Black: CDI unit with red/black
• Yellow: Lights
• White: Battery charge/regulator

Timing:
0.40 mm before TDC for original stroke crankshaft
0.35 mm before TDC for long-stroke crankshaft

Instructions
